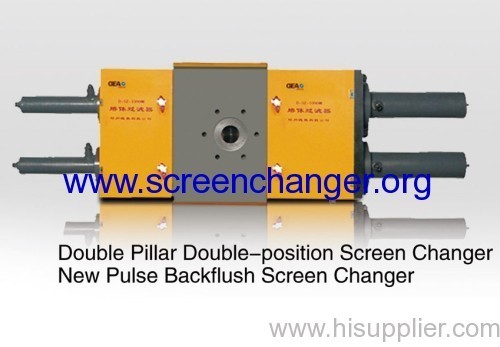

Continuous backflush screen changer/melt filter
The new high-pressure pulse backflush
screen changer is the latest product developed by Deao of self-owned Chinese invention patent and international invention patent. There is no need to change the screen, but backflush of rapid pulse by little clean material in the machine. It is a symbol of internationally advanced technology, and is especially applicable for the machines of waste recycling and granulating, and direct waste processing. It is applied in the process of medium and large production lines with the features of high precision filtration, large production flow, good stability, and high automation.
| Screen size L×W (cm) | Screen area(cm2) | Pressure (Mpa) | Heating Power(kw) | Output(kg/h) |
DHZX-120 | | 193×2 | ≤25 | 14 | ≤2000 |
DHZX-160 | | 423×2 | ≤25 | 14 | ≤2500 |
DHZX-1800 | 47×19 | 900×2 | ≤25 | 14 | ≤3000 |
DHZX-2000 | 47×21 | 1000×2 | ≤25 | 14 | ≤4000 |
DHZX-2250 | 53×21 | 1125×2 | ≤25 | 14 | ≤4500 |
DHZX-2700 | 53×25 | 1335×2 | ≤25 | 14 | ≤5400 |
DHZX-3300 | 66×25 | 1650×2 | ≤20 | 20 | ≤6600 |
DHZX-4400 | 88×25 | 2200×2 | ≤20 | 20 | ≤8400 |
DHZX-5650 | 94×30 | 2827×2 | ≤20 | 20 | ≤11300 |
2, No need to change the screen, but backflush of rapid pulse by little clean material in the machine (self-cleaning system)
3,Cleaning area of the filtering screen up to 80%-95%
4,No interrupt the product
5, The filtering screen can be used more than 100 times.(depending on the density of the screen)
