Continuous Screen changer Back Flush type DHZX from China manufacturer

Continuous Screen changer Back Flush type DHZX

Price:	1.0~40000.0 USD
Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DHZX

Production Capacity: 50 pieces per month

Delivery Date: within 50 days after PO con...

Function: filter for plastic polymer ...

Belong to: parts and components for pl...

Suitable materials: almost all polymers

Means of Transport: Ocean,Land,Air

Packing: standerd wooden case

Structure: Hydraulic Filter

Brand Name: DEAO

Use for: the production of plastic e...

Type: different types to be match...

Continuous Screen changer Back Flush type DHZX
1.lastest international & Chinese patent
2.screen washing online available

Continuous Screen changer Back Flush type DHZX

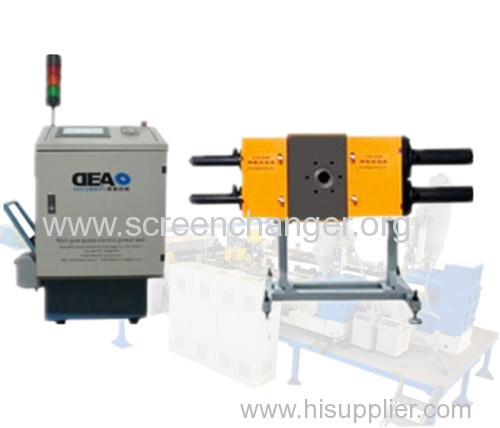

BACKFLUSH SCREEN CHANGER FOR CONTINUOUS OPERATION

The DEAO screen changer type DHZX is based on the large screen area double piston screen changer DHZ.

Applications

1. Applicable to all the kinds of plastic products. specially in the recycling and granulation combined with high impurities, such as PE/PP/PS/ABS/PET/PA/etc.

2. Applicable to the production line of chemical fiber, rubber, collosol, adhesive, coating and finishing materials and other blending agent products, used for filtration of the material mixture.

Customized special solutions
1,continuously working melt filter
2,no interference of the process during the backflushing
3, the screen is wrapped on the slide bar with holes
4,simple adjustment of the PLC control system by the operator – 100% reproducible automatic screen cleaning that is independent from the operator
5,The filtering screen can be used more than 100 times.(depending on the density of the screen)

6,Back flush one time-Cleaning area of the filtering screen up to 80%-95%
7,Filtering area from 365 cm2 to 10000 cm2, initiative internationally (international patent)

Technical data

Type	Screen size L×W (cm)	Screen area(cm2)	Pressure (Mpa)	Heating Power(kw)	Output(kg/h)
DHZX-120	29.8*6.5	193×2	≤25	14	≤700
DHZX-160	42.4*10	424×2	≤25	14	≤2000
DHZX-1800	47×19	900×2	≤25	14	≤3000
DHZX-2000	47×21	1000×2	≤25	14	≤4000
DHZX-2250	53×21	1125×2	≤25	14	≤4500
DHZX-2700	53×25	1335×2	≤25	14	≤5400
DHZX-3300	66×25	1650×2	≤20	20	≤6600
DHZX-4400	88×25	2200×2	≤20	20	≤8400
DHZX-5650	94×30	2827×2	≤20	20	≤11300
