plastic polymer melt filter-single plate double working position from China manufacturer

plastic polymer melt filter-single plate double working position

Price:	1.0~7000.0 USD
Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DHB

Production Capacity: 100 sets per month

Delivery Date: 40days after receiving down...

Belong to: spare parts of plastic extr...

suitable materials: almost all polymers PP/PE//...

Type: different types to be match...

Means of Transport: Ocean,Land,Air

Packing: seaworthy packing

Brand Name: DEAO

Function: polymer melt filtration

Application: pipe/sheet/plate/tube/compo...

high pressure resistant: 500bar

1,plastic polymer melt filter-single plate double working position
2,screen changer/ melt filter designed to be matched with different extruders

plastic polymer melt filter-single plate double working position

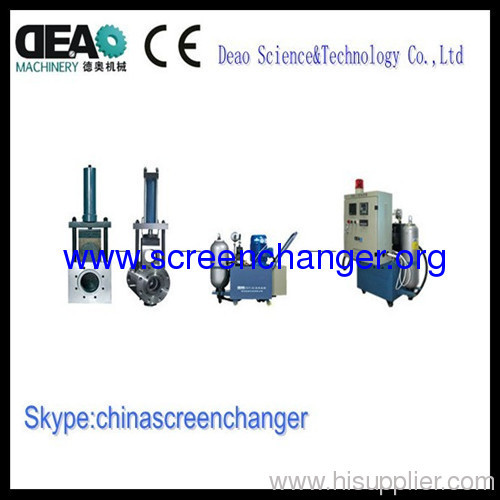

single plate -double working position screen changer

The plate has two filter screen cavities ,one of them work with the plastic machine at the same time, when a screen change is required, the cavity with dirty screen will be moved out by hydraulic in a minimum time, and at the same time, the other cavity with new screen will be moved into the working position . the screen replacement is very short and no need shut down the working machine

Performance characteristics:

1,Automatically compensates the sealed surface clearance(self-owned patent), high-pressure resistant, high-temperature resistant, and no material leakage. Contain screens of large filtering area, especially appropriate for high yield production line under high pressure.

2,No need to stop the working machine when changing the screen, easy to operate and maintain, reliable for higher production output and lower energy consumption, 80%-90% down of waste material caused by screen changing.

Technical Data

Type	Screen Diameter(mm)	Heating power(Kw)	Suitable Materials (Mpa)	Output(Kg/h)
DHB-70	Φ70	4.4	≤50	60-250
DHB-100	Φ100	6.8	≤50	110-400
DHB-120	Φ120	8.6	≤50	140-550
DHB-150	Φ150	9.8	≤50	200-800
DHB-170	Φ170	9.8	≤50	300-1000
DHB-200	Φ200	11.6	≤50	400-1200
DHB-250	Φ250	16.4	≤50	600-1800
DHB-300	Φ300	16.4	≤50	800-2500
