Continuous screen changer: ensure the screen changing without machine halt or production interrupt

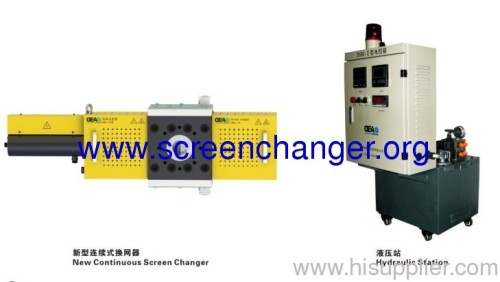

New continuous screen changer
The new continuous screen changer and new four-screen recycling screen changer are especially applicable to foaming plate products such as XPS, EPS, EPE and cast
film. It ensures the screen changing without machine halt or production interrupt, which has been widely tested and verified in production practice.
Performance characteristics:
1,No need to stop the working machine when changing the screen, no material explosion, noiseless, no material leakage, or production interrupt while working.
2,This screen changer (self-owned patent ) is characterized by the convenience and safety to change the filtering screen with it. It is time-saving to install the filtering screen with the screen changer, and there is no need to manually disassemble the machine, adjust the para-position screen, or install the lock pact between different screens, thus the screen changing operation will be reduced by 90%.
Application fields:
1,Applicable to all kinds of
plastic products.
2,Applicable to the
production line of chemical fiber, rubber, collosol, adhesive, coating and finishing materials and other blending agent products, used for filtration of the material mixture.
Besides, it can offer filed service commissioning and rebuild the original die-head for users, which helps to make their plastic machine more efficient. Travelling expenses and accommodation fee should be borne by Buyers.
Technical data:
Type | Screen type (mm) | Heating power(kw) | Pressure (Mpa) | Output (kg/h) |
DHBL-80 | 70×70 | 3 | ≤50 | ≤250 |
DHBL-100 | 100×90 | 5.6 | ≤50 | ≤450 |
DHBL-130 | 120×110 | 6.8 | ≤40 | ≤550 |
DHBL-150 | 140×130 | 8 | ≤40 | ≤900 |
DHBL-200 | 190×170 | 10 | ≤30 | ≤1500 |
