Single plate continuous screen changer for foaming board extrusion line
| Price: |
1.0~7000.0 USD |
| Payment Terms: |
T/T |
| Place of Origin: |
Henan, China (Mainland) |
Product Detail
Model No.:
DHBL
Production Capacity:
100 sets per month
Delivery Date:
40 days after receiving dow...
Product name:
screen changer/ melt filter
Function:
polymer melt filtration
Material:
high quality alloy steel /3...
Type:
different types to be match...
Means of Transport:
Ocean,Land,Air
Packing:
seaworthy packing
Brand Name:
DEAO
Attribute:
auxiliary equipment of plas...
Application:
almost all polymers PP/PE//...
Pressure resistant:
35bar
1,Single plate continuous screen changer for foaming board extrusion line 2,ISO9001:2000, CE approved.
3,Initiator of new screen changer in China
Single plate continuous screen changer for foaming board extrusion line
Single plate continuous screen changer consists of the main body of the screen changer, the hydraulic station and the electrical controlling pack.
there are two screen cavities-Perforated plate, they closed in a minimum distance, and equipped with the feed material and exhaust system. no need to stop the on-going machine when change the screen , and no interrupt the production.
Type | Screen type (mm) | Heating power(kw) | Pressure (Mpa) | Output (kg/h) |
DHBL-80 | 70×70 | 3 | ≤50 | ≤250 |
DHBL-100 | 100×90 | 5.6 | ≤50 | ≤450 |
DHBL-130 | 120×110 | 6.8 | ≤40 | ≤550 |
DHBL-150 | 140×130 | 8 | ≤40 | ≤900 |
DHBL-200 | 190×170 | 10 | ≤30 | ≤1500 |
The following picture shows the screen changer working progress.
Applications
1,The new continuous screen changer is especially applicable to foaming plate products such as XPS, EPS, EPE and cast film. It ensures the screen changing without machine halt or production interrupt, which has been widely tested and verified in production practice.
2, our screen changer can be used on the PP,PET monofilament, such as hair wig
3, this kind of screen changer can be used on pelletizing.

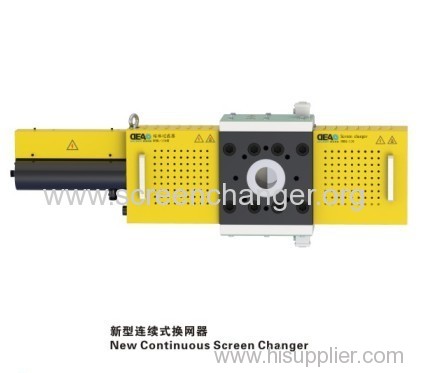

Some pictures of the screen changer before delivery
The screen changer applied in the extrusion lines
Attachment is the brochure of the continuous
screen changer
