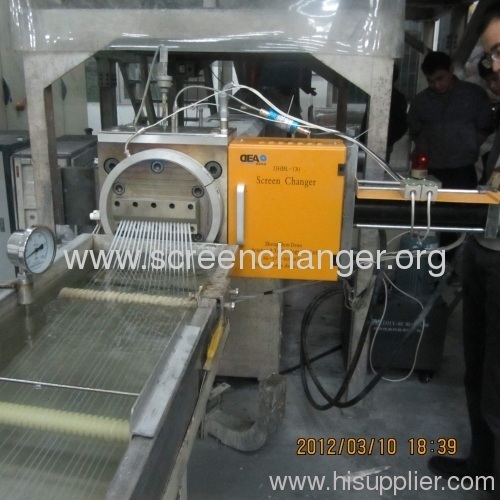

new continuous screen changer for foaming sheet extrusion line
The new continuous screen changer and new four-screen recycling screen changer are especially applicable to foaming plate products such as XPS, EPS, EPE and cast film. It ensures the screen changing without machine halt or production interrupt, which has been widely tested and verified in production practice.
Performance characteristics:
1,new continuous screen changer for foaming sheet extrusion line, No need to stop the working machine when changing the screen, no material explosion, noiseless, no material leakage, or production interrupt while working.
2, new continuous screen changer for foaming sheet extrusion line(self-owned patent ) is characterized by the convenience and safety to change the filtering screen with it. It is time-saving to install the filtering screen with the
screen changer, and there is no need to manually disassemble the machine, adjust the para-position screen, or install the lock pact between different screens, thus the screen changing operation will be reduced by 90%.
Application fields:
1,Applicable to all kinds of plastic products.
2,Applicable to the production line of chemical fiber, rubber, collosol, adhesive, coating and finishing materials and other blending agent products, used for filtration of the material mixture.
.Sheet.
.Tubing
.Lab lines
.Coating
.Pipe and profile
.Compounding
.wire and cable tubing lab lines
.EVA, hot melt adhesive and PSA
.Pelletizing ( strands and under water)
.Blown film and cast film
.Degradable materials
Type | Screen type (mm) | Heating power(kw) | Pressure (Mpa) | Output (kg/h) |
DHBL-80 | 70×70 | 3 | ≤50 | ≤250 |
DHBL-100 | 100×90 | 5.6 | ≤50 | ≤450 |
DHBL-130 | 120×110 | 6.8 | ≤40 | ≤550 |
DHBL-150 | 140×130 | 8 | ≤40 | ≤900 |
DHBL-200 | 190×170 | 10 | ≤30 | ≤1500 |
,
