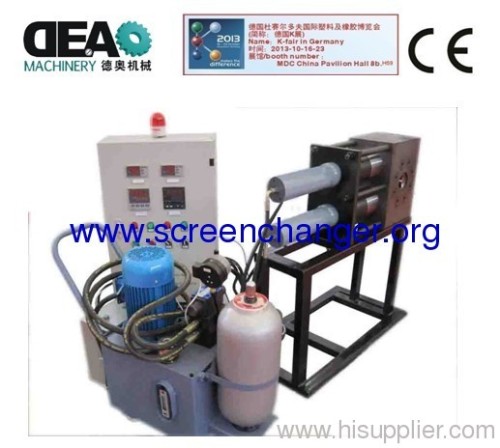

The hydraulic operated piston screen changers can provide better melt sealing and can be operated automatically. It is used in those processes that melt viscosity are relatively low and melt pressure fluctuation is desirably small.
Performance characteristics:
1. Special sealed structure design(self-owned patent),excellent effect, no material leakage for more than five years.
2. Dual channels for filtration, no need to stop the working machine when changing the screen, no production interrupt, and more efficiency and less energy consumption without any defective product. Especially appropriate for the production of cast film, plate and sheet.
3. Simple construction, reliable operation; Easy maintenance, lower running cost;
Automatic screen changing by hydraulic; Machine non-stopped
4. The function of filling material exhaust and pollution discharge guarantee the process of replacing screen continuously. Exhaust system device can fully defuse the gas mixed in the materials and improve the product quality.
The double piston Screen Changer allows for filtration of most all polymers without interrupting production during a screen change. The Screen Changer consists of two pistons with each containing a filter cavity. When a screen change is required, one of the pistons is moved out of the housing while the other remains in the operating position. The dirty screen pack is removed and replaced with a new one. The piston is then moved back into the housing to its venting stages before resuming operation. These steps are then repeated for the other piston. This concept allows for continuous filtration with no interruption or loss of production
Application
.sheet
.coating
.pipe
.compounding
.wire and cable
.tubing
.textiles(fibers and nonwovens)
.EVA, hot melt adhesive and PSA
.pelletizing(strands and underwater)
.recycling of most polymers
.blown film and cast film
.corrosive and degradable materials
Attached form is the information of your extrusion plant, kindly fill it, it will help us to recommend the most suitable type of
