Double Pipe Extrusion Line

Price: 1.0~40000.0 USD
Payment Terms: T/T
Place of Origin: Henan, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: DHZ
Production Capacity: 100 sets per month
Delivery Date: 40 days after receiving dow...
Function: polymer melt filtration
Product name: screen changer/ melt filter
Application: almost all polymers PP/PE//...
Pressure resistant: 350bar
Means of Transport: Ocean,Land,Air
Packing: seaworthy packing
Structure: Hydraulic Filter
Brand Name: DEAO
Attribute: auxiliary equipment of plas...
Material: high quality alloy steel /3...
Type: different types to be match...

1,Double pillar continuous screen changer/melt filter
2, No disturb the production when change the screen

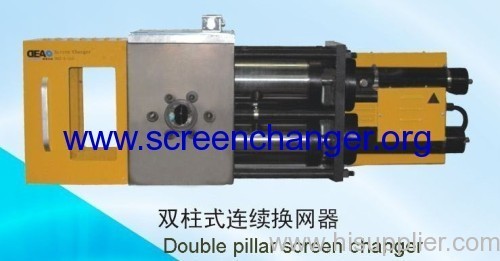

Double pillar continuous screen changer/melt filter
Double-piston continuous screen changer realizes a non-stopping screen changing operation by altering two pistons with double filtering areas. During production, the polymer melt is divided into two flow channels inside the screen changer housing, then conveyed through the two filters equipped with the appropriate filter medium. This filter medium consists of screen packs supported by breaker plates.

Features of plastic extrusion hydraulic continuous screen changer- double piston type
1, It can match with extruders of different design. It is applicable to process with most polymers at high output.
2, Double-channel nonstop screen changer work alternatively, which can change the screen with minimum melt pressure fluctuating and production interrupting.
3, Two stages air vent for the hydraulic system to eliminate bubbling in polymer flow.
4, Superior sealing system completely eliminates polymer leakage.
5, External safety cover gives better appearance and safe protection.
6, It is equipped with circular\elongated or U- shaped screens, for enlarged filtration area.
Double pillar continuous screen changer/melt filter
Benefits of plastic extrusion hydraulic continuous screen changer- double piston type
1, Eliminates line shutdown thus increasing production
2, Leakage-free process
3, Two breaker plates design increases filtration area compared to single breaker plate design
4, Reduced downtime & scrap
5, Reduced inlet pressure at extrusion die
6, Reduced temperature variations in the melt ·
cast film (Bubble pack\ Medical\Food Wrap)
Sheet (Foam\Strapping\Plastic cardboard)
Coating (Hot melt adhesive)
Pipe (Corrugated\Gas Pipe) and profile
Compounding (Master Batch\filler)
Wire and cable extrusion
Tubing (Medical\ Industrial\Irrigation)
Fibers (Monofilament)
Blow molding
Pelletizing (strands and underwater)
Recycling of most polymers
Technical Data
Type
Screen—Dm(mm)
Screen area(cm2)
Heating Power(kw)
Output(kg/h)
DHZ-2-100
Φ70
38 x 2
2
50--150
DHZ-2-120
Φ90
64 x 2
4.6
100--350
DHZ-2-160
Φ135
143 x 2
14
300--700
DHZ-2-200
Φ155
187 x 2
14
400--1000
DHZ-2-300
oval screen
300x2
14
1000--4000
DHZ-2-1800
square screen
900x2
14
2000--6000
Double pillar continuous screen changer/melt filterDouble pillar continuous screen changer/melt filterDouble pillar continuous screen changer/melt filterDouble pillar continuous screen changer/melt filter
