Plastic extruder continuous screen changer double chanel type from China manufacturer

Plastic extruder continuous screen changer double chanel type

Price:	1.0~40000.0 USD
Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DHZ

Production Capacity: 100 sets per month

Delivery Date: 40 days after receiving dow...

Function: polymer melt filtration

Product name: screen changer/ melt filter

Application: almost all polymers PP/PE//...

Pressure resistant: 350bar

Means of Transport: Ocean,Land,Air

Packing: seaworthy packing

Structure: Hydraulic Filter

Brand Name: DEAO

Attribute: auxiliary equipment of plas...

Material: high quality alloy steel /3...

Type: different types to be match...

1,Widely used plastic extrusion machine screen exchange filter
2, No disturb the production when change the screen

Plastic extruder continuous screen changer double chanel type
This kind of DHZ series screen changer we also called it
double piston screen changer
double pillar screen changer
double column screen changer
two chanel screen changer

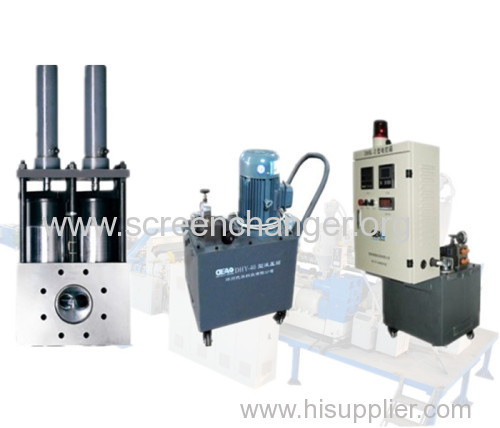

A picture of the plastic extruder continuous screen changer double chanel type.

its structure just like its name, there are two pistons on the screen changer body, and each piston there is a screen, round or oval, we do this to increase the screen area . how does the plastic extruder continuous screen changer double chanel type, in the normal time, the two screens are on the working position , when the screen change is required , one of the piston with the dirty screen will be pushed out , and we replce the screen with a new one, then the piston is pushed into the working position. and the next step is to chage the other screen on the other piston.

Which kind of products fit for this continuous screen changer double piston type?

1, used for the pipe, sheet ,cast film, granulation and so on

2. Applicable to the production line of colossal, adhesive, coating and finishing materials and other blending agent products, used for filtration of the material mixture, filtering screen replacement available without machine halt.

How long time do we need to change the screen?
it's depends on the contaminate degree of the raw material, if the material is very dirty, the screen change interval will be short.

Do we must need the electrical controlling pack?
it's not a must, but if we install the electrical controlling pack, there is a warning device, when the screen change is required, the warning device will alarm automatically. it is easy for us to operation.

The following are some pictures of the plastic extruder continuous screen changer double piston type.
